Hay Bale Trailer – Iron Baltic 43.0000

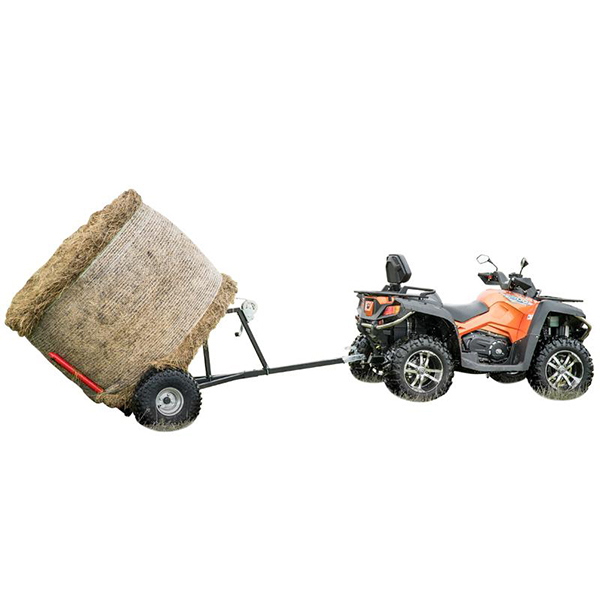

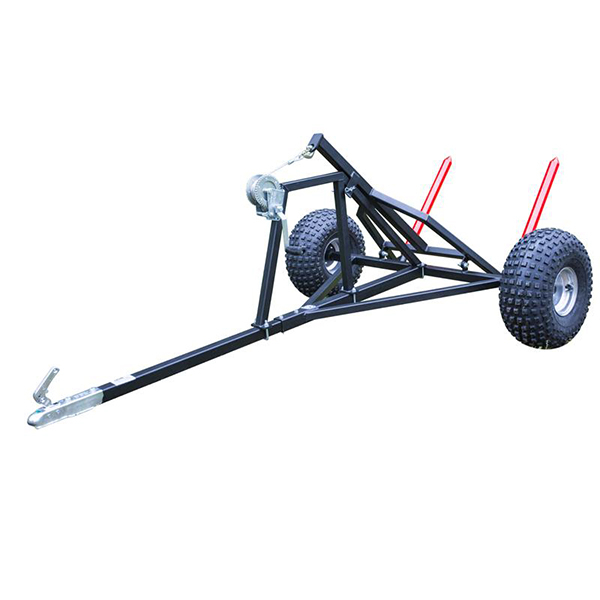

The Iron Baltic bale trailer is a simple yet highly durable solution for transporting hay bales. Thanks to its design, it is easy to handle and maneuver, making it ideal for daily tasks on small farms, stables, or livestock ranches. This trailer allows for the convenient movement of hay between fields, storage areas, and feeding zones.


Key Features:

• Simple Loading: Loading a bale requires no additional machinery. Simply back the trailer up to the bale, lower the spikes using the manual winch, drive them into the bale, and lift the load for transport using the winch. Unloading is just as easy – simply lower the bale and drive away. It is a safe process manageable by a single person.

• Robust Construction: The steel frame is galvanized and powder-coated, ensuring a long service life and excellent resistance to corrosion.

• Maneuverability: Its compact dimensions allow for easy maneuvering between trees, crossing ditches, or passing through narrow gates and low doorways that are inaccessible to large machinery.

• Low Ground Pressure: Equipped with 22x11-R8 off-road tires, the trailer does not damage the lawn or soft soil, making it suitable for work in various conditions.

• Stability: The wide chassis ensures stability when transporting bales over uneven or rough terrain.

Technical Specifications:

• Manufacturer: Iron Baltic

• Manufacturer Code: 43.0000

• Load Capacity: Up to 600 kg

• Winch: Manual (included in the kit) with a 10 m cable

• Spike Dimensions: 3.5 mm x 57 mm x 950 mm

• Distance Between Spikes (center-to-center): 780 mm

• Tires: 22x11-8” all-terrain

• Dimensions: 3000 mm (L) x 1950 mm (W) x 1080 mm (H)

• Weight: 113.5 kg (basic construction)

• Coupling: 50 mm (2'') hitch ball

Optional Upgrades:

While the basic configuration includes a manual winch, an electric winch kit (06.000) can be installed for even greater convenience, allowing you to lift the bale via remote control (sold separately).

Who is it for?

• Small Farm Owners: Those looking for an economical and efficient way to move bales without using a tractor.

• Stable Managers: For the convenient delivery of feed directly to paddocks or stalls.

• ATV and UTV Users: Those wanting to maximize the utility of their quad bike for farm chores.
