CFMOTO U10 PRO HIGHLAND XL EPS UTV (Mini Tractor) T1b Category
Motorcycles and ATV's trade in.

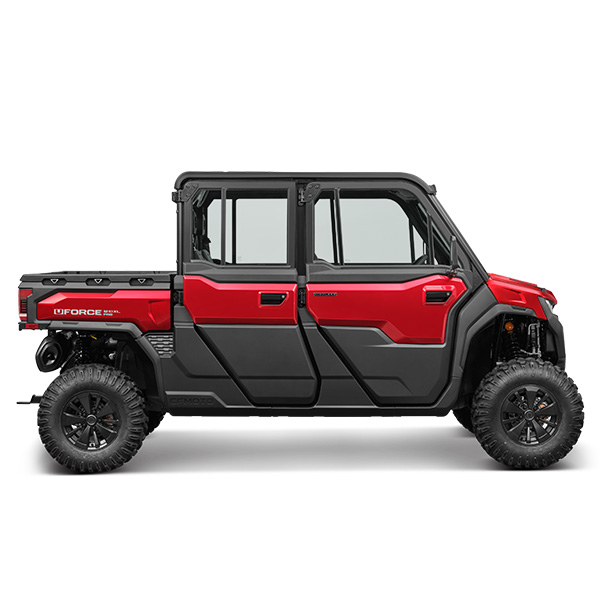

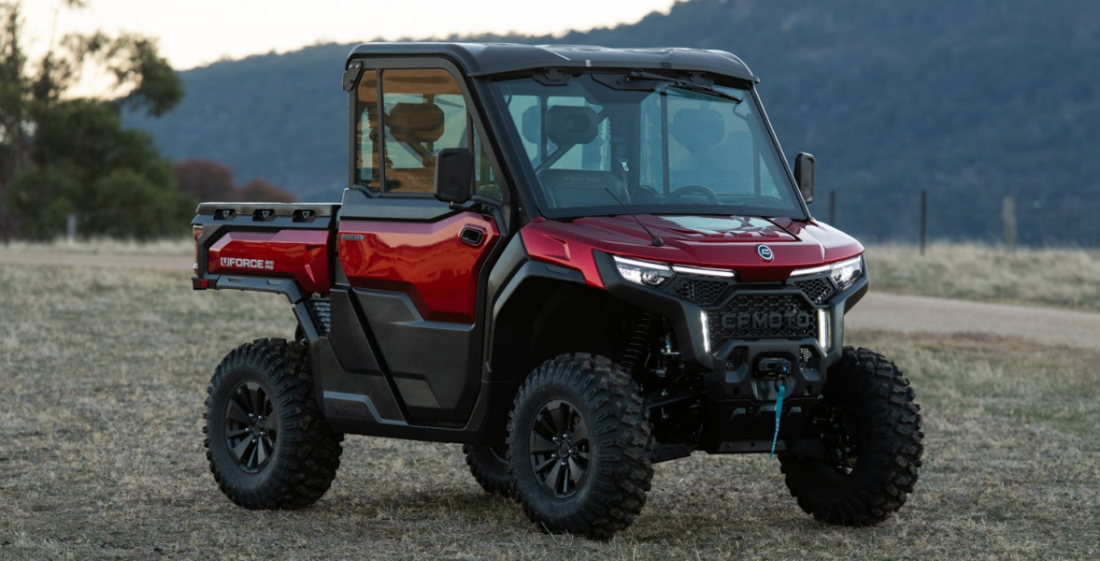

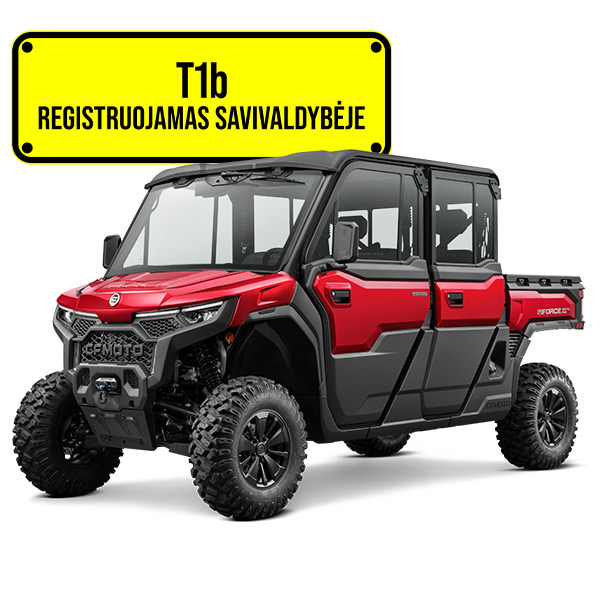

CFMOTO U10 PRO XL HIGHLAND
U10 PRO XL Highland is a top-class six-seater UTV designed for intensive work and comfortable use in any weather conditions. The enclosed cabin with a heating and air circulation system, a modern multimedia system, and an extensive standard equipment package ensure comfort, functionality, and readiness for any challenge.
ENGINE
The U10 PRO model is equipped with a 998 cc three-cylinder engine delivering 66 kW of power, ensuring an optimal balance between durability and performance on any terrain. This liquid-cooled, four-stroke engine with VVT (Variable Valve Timing) technology delivers strong torque from low RPM (3000 rpm) and guarantees smooth operation. The maximum torque of 64.5 Nm is reached at 6500 rpm.
CHASSIS AND OFF-ROAD CAPABILITY
The independent dual-arm rear suspension (travel – 26 cm) and A-arm front suspension (travel – 28 cm) with hydraulic shock absorbers effectively absorb even the toughest impacts, ensuring easy and comfortable handling even on rough terrain. For added comfort, the UTV offers an impressive ground clearance of 33 cm, allowing it to tackle even the most challenging off-road sections.
6 SEATS
The UTV is equipped with LED lights that ensure excellent visibility at any time of day. Bright front LED headlights effectively illuminate the road, even in the harshest weather conditions.
LED LIGHTS
The newly designed radiator is mounted at the top of the front end, and its adjustable angle makes it easy to adapt the ATV to different conditions. A fully horizontal position is ideal for muddy riding, ensuring effective cooling and preventing clogging. Angling it at 45 degrees improves heat dissipation. Both positions are secured with hand-tightened bolts. The fully upright position also simplifies maintenance and cleaning.

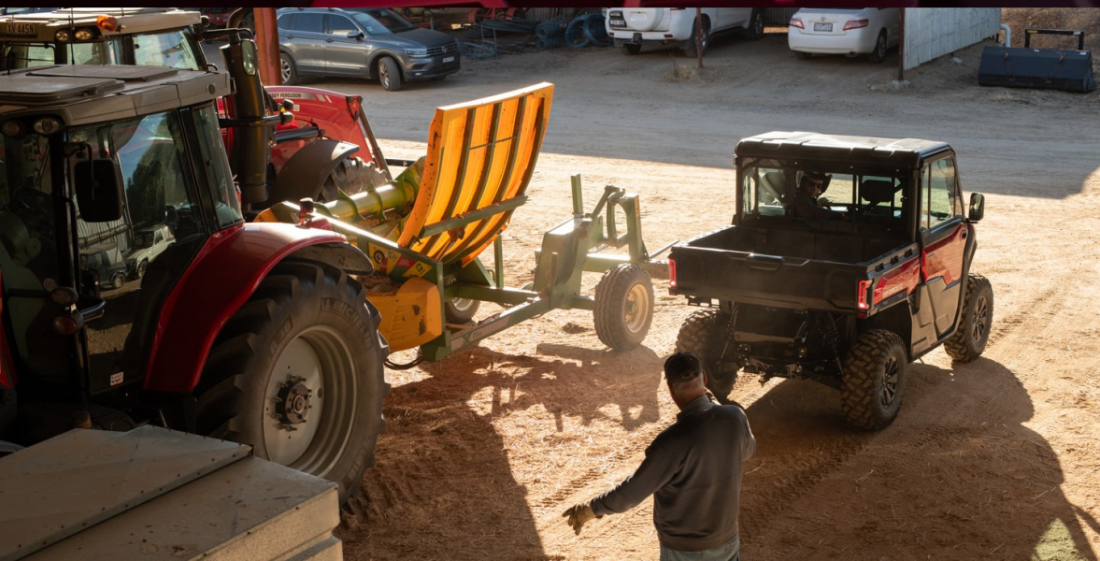

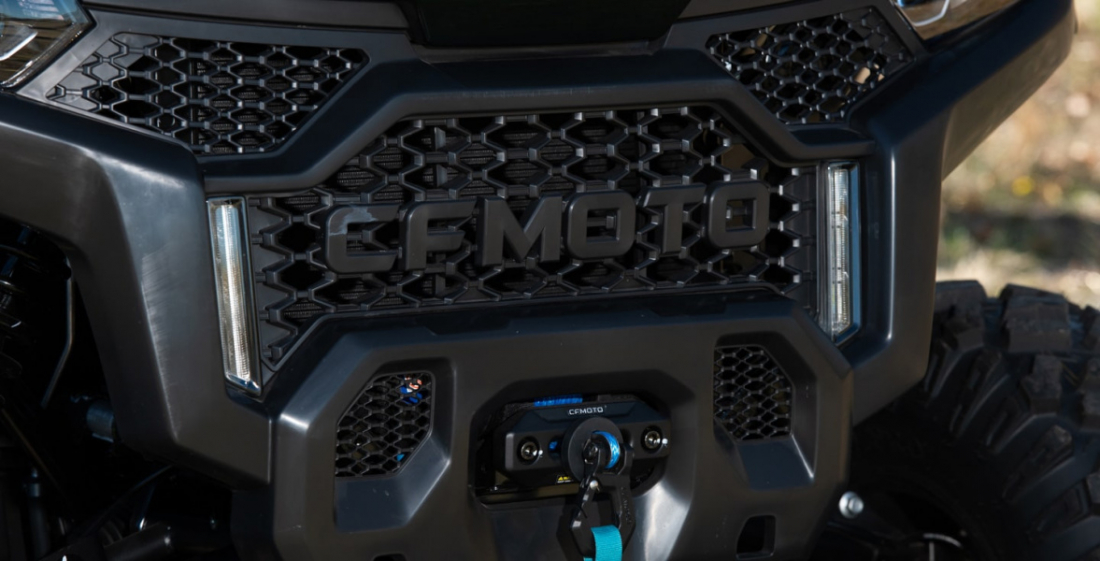

WINCH AND HIGH TOWING CAPACITY
The U10 XL PRO Highland features an impressive towing capacity of 1134 kg. The front-mounted winch with a synthetic rope can pull loads of up to 4500 lbs, making it ideal for demanding tasks.

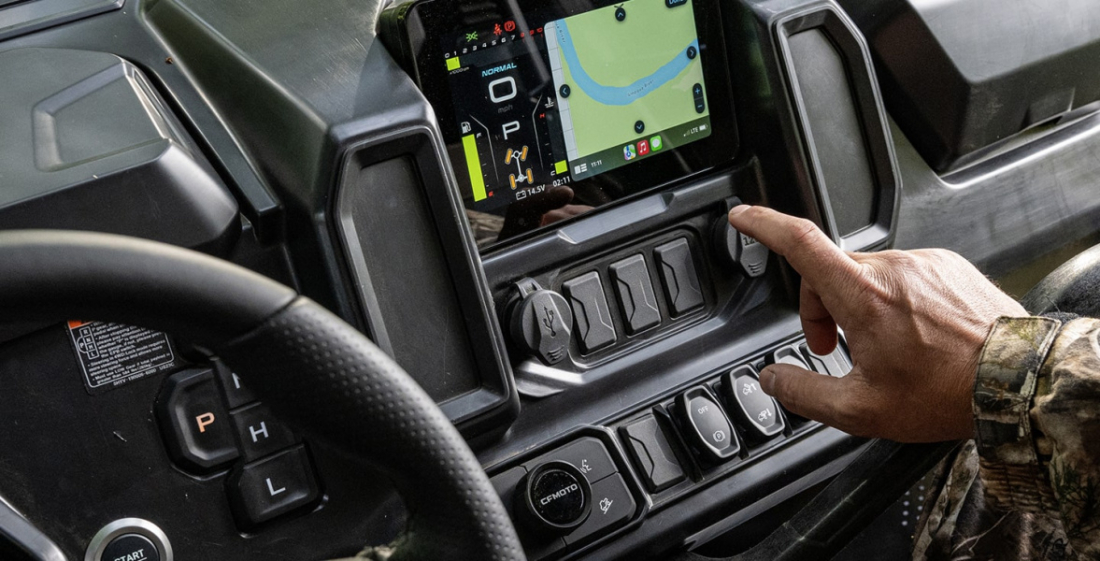

FULLY ELECTRONIC CONTROLS
Gear selection in the UTV is done electronically with the push of a button. All main functions are easily accessible via buttons or the 20 cm touchscreen MMI display, offering a modern and intuitive user experience.
T-BOX SMART SYSTEM
Access smart features of the CFMOTO RIDE mobile app for an additional fee. This smart interface with the T-Box module allows you to remotely lock and unlock the vehicle with a digital key, track its location in real-time, and receive alerts when the UTV leaves the parking perimeter without your knowledge. You can also monitor the vehicle's technical condition and receive reminders about upcoming service maintenance, view trip data, and see the remaining range — and much more (additional TERMS apply).
FULL BOTTOM PROTECTION
Designed for intensive use, the U10 XL PRO HIGHLAND is equipped with a durable full underbody skid plate made of strong plastic, ensuring safe operation even in the most challenging environments.
ASSISTANCE AND COMFORT SYSTEMS
For a smooth and effortless ride, the UTV is equipped with an EPS power steering system featuring Progressive EPS, allowing for light and responsive steering while maintaining excellent stability. To suit different tasks, it offers two drive modes: Work and Normal.
An electronic downhill assist system ensures extra stability when descending steep slopes. The cabin features both 12V and USB fast-charging ports, with an additional 12V socket located in the rear cargo area.
ENCLOSED CABIN
The U10 XL PRO Highland comes with a fully enclosed, sealed cabin for enhanced comfort in all weather conditions. For added convenience, the side windows are electrically operated, and the front windshield can be raised or lowered at the push of a button.
While comfort is a priority, appearance also matters—the cabin doors are painted in the same color as the body for a sleek, unified look.
RIDE MODES
Customize your CFORCE 1000 Mud Version G3 to suit your needs with the press of a button — choose from three ride modes: Sport, Normal, or Work.
ELECTRONIC PARKING BRAKE (EPB)
The Electronic Parking Brake (EPB) allows users to focus on the job without worrying about manual parking procedures. Whether making a brief stop or parking for the day, the EPB ensures reliable and consistent braking force, enhancing safety and convenience.
When the vehicle is turned on and in H/L/R gear, pressing the accelerator automatically releases the EPB, ensuring smooth movement.

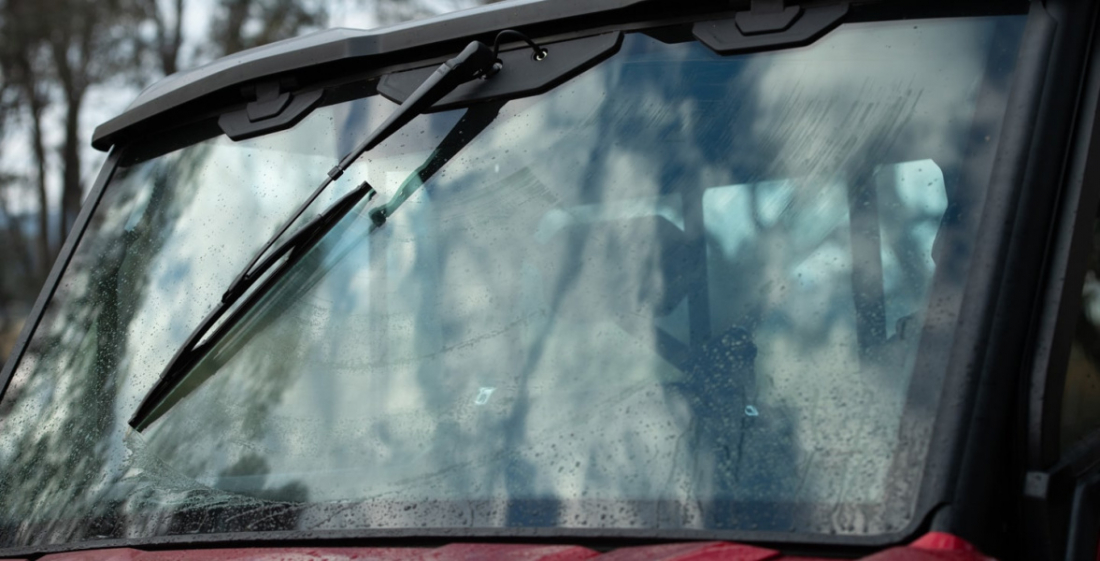

WINDSHIELD WIPERS
The front windshield features a wiper with a washer function, all of which can be conveniently controlled via buttons on the central console.
CFMOTO U10 PRO XL Highland Technical Specifications
| Type | Three-cylinder, liquid-cooled, four-stroke, DOHC 12-valve |
| Displacement | 998 cc |
| Torque | 94.5 Nm / 6500 rpm |
| Maximum power | 66 kW / 7250 rpm |
| Ignition | ECU „BOSCH” |
| Transmission | OmniDrive™ CVT (Continuously Variable Transmission) |
| Fuel system | Bosch EFI (Electronic Fuel Injection) |
| Length × Width × Height | 3897 x 1645 x 1945 mm |
| Wheelbase | 2860 mm |
| Ground clearance | 330 mm |
| Weight | 1043 kg |
| Max. payload capacity: | 657 kg |
| Trunk capacity | 454 kg (869 × 1340 × 293 mm) |
| Seating capacity | 6 |
| Fuel tank capacity | 45 L |
| Maximum speed | 60 km/h |
| Color | Red, TT Kanati |
| Transmission | L-H-N-R-P, 2WD/4WD/4WD with differential lock |
| Brakes | Hydraulic, 4 disc brakes with electronic parking brake |
| Suspension | Front: High-clearance A-arm independent suspension (travel 28 cm) Rear: Dual A-arm independent suspension (travel 26 cm) |
| Shock absorbers | Oil-damped with adjustable preload |
| Wheels | Front: 14×7.0 AT aluminum; Rear: 14×8.0 AT aluminum |
| Tires | Front: 29 x 9-R14 Rear: 29 x 11-R14 |
| Power steering | Yes |
Standard Equipment: Color touchscreen MMI display, front and rear LED lights, adjustable driver’s seat, tow hitch with electrical connector, electric winch with synthetic rope, audio system, keyless start system, power tilting cargo bed, alloy wheels, 12V and USB charging ports, Bluetooth phone connectivity, two driving modes, downhill braking system, Apple CarPlay, enclosed cabin, windshield wipers, electric windows, T1B registration.
A 2-year manufacturer's warranty is provided for the CFMOTO U10 PRO XL Highland UTV
