Домой > Обслуживание > Детали двигателя > Ремкомплект карбюратора > CARBURETOR VM SERIES 32 MM VM32-33
MIKUNI

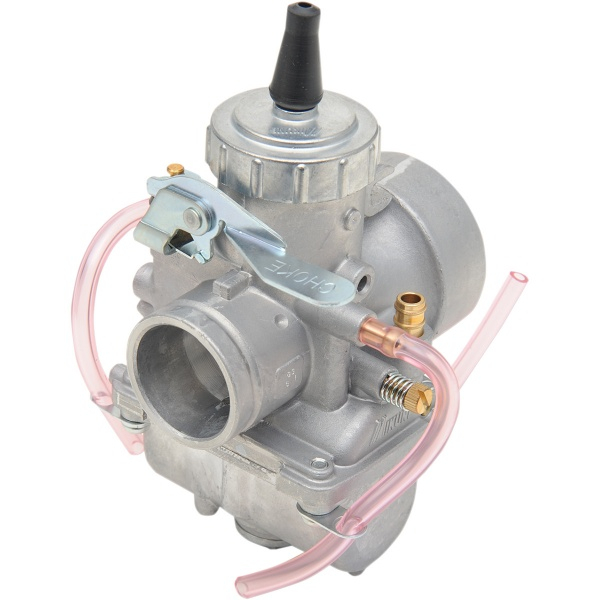

CARBURETOR VM SERIES 32 MM VM32-33
VM Series Round Slide Carburetor
- Adjustment screws and enricher are on left side of carburetor unless noted
- Round slide configuration offers great flow characteristics
- Use Mikuni jets and parts for best results
- Clamp type mounting unless noted via footnote
- Made in Japan
Mikuni VM32-33 Dimension A= 40mm, B= 102mm, C= 137mm, D= 58mm, Total Width 83mm
| COLOR/FINISH | Natural |
| FEATURES | Clamp-On Type Mounting |
| UNITS | Each |
| PRODUCT NAME | VM Round Slide Carburetor |
| CARBURETOR SIZE | 32,00 mm (1,26") |
| AIR JET | 2.0 |
| SPIGOT MOUNTING OUTSIDE DIAMETER | 40 |
| NEEDLE VALVE | 3.3 (VM34/39) |
| SLIDE CUTAWAY | 3.0 (VM34/110) |
| NEEDLE JET | Q-6 (159 Series) |
| CARBURETOR SIZE IMPERIAL | 1.26" |
| NEEDLE | 6DP17 |
| CARBURETOR SIZE METRIC | 32.00 mm |
| PILOT JET | 35 (VM22/210) |
| MAIN JET | 200 (4/042) |
| BASE FINISH | Natural |
