Home > Accessories > Windshield > Reguliuojamas stiklo paaukštinimas PUIG 2.0 clip-on transparent 20764W Skaidrus
Puig

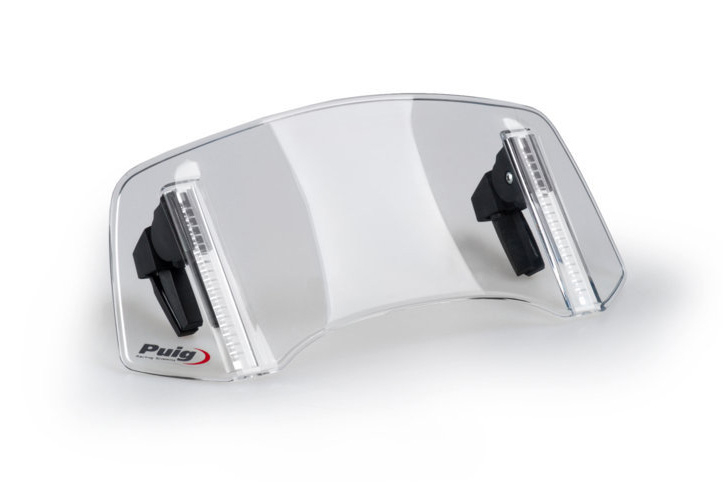

Reguliuojamas stiklo paaukštinimas PUIG 2.0 clip-on transparent 20764W Skaidrus
Reguliuojamas stiklo paaukštinimas PUIG 2.0 clip-on transparent Skaidrus
Design
The new 2.0 multi-adjustable visor, "Clip-on" version, substantially improves the aerodynamic adaptability of your motorcycle, providing all the necessary comfort to enjoy the route. It allows to place it in infinity of different positions to adapt to the needs of each user.
Its simple shapes are specifically designed to deflect gusts of wind that hit sensitive areas of the rider, in addition to avoiding possible impacts and protecting you from inclement weather. On the other hand, it adapts perfectly to the aesthetic line of your motorcycle.
Puig offers the possibility of choosing the visor in clear or light smoked material.
Data sheet
Entirely designed and manufactured in Barcelona under the latest technology, the new 2.0 multi-adjustable visor is made of injected polycarbonate with anti-scratch treatment, high clearness and maximum resistance to possible impacts.
Its rounded contour has been designed to guarantee maximum safety, always complying with the most demanding European safety regulations.
The measurements of the visor are 300mm wide x 130mm high, with a distance between guides of 200mm, so as not to interfere with the view through.
Mounting
Thanks to the "Clip-on" system, the assembly of the piece will be easy and fast. It is only necessary to loosen the two screws on the visor and adapt it to the center of the screen using the pliers.
Aerodynamics
Puig's 2.0 multi-adjustable visor makes the difference in terms of aerodynamics. Thanks to its shape and its adaptation to the screen, it diverts the air flow from sensitive areas and distributes the pressure.
In addition, it is very useful in the face of possible turbulence and annoying sounds, regardless of the height of the rider.
Additional Information
Along with the piece, Puig serves an intuitive assembly instruction booklet, an infographic video and the aerodynamic study carried out.
Producer | Model |
---|---|
5078 10000006104Aprilia | ETV 1000 |
4847 10000005922BMW | F 650 |
4919 10000006483BMW | F 700 |
4582 10000004743BMW | F 800 |
6444 10000012182BMW | F 850 |
4802 10000005588CFMOTO | 650MT |
6425 10000011802CFMOTO | 800MT |
6346 10000010962CFMOTO | CLX |
4799 10000005950Honda | XL 650 |
4785 10000005948Honda | XL 1000 |
4786 10000005951Honda | XRV 750 |
5244 10000006774KTM | 790 |
5243 10000006771KTM | 1050 |
5254 10000006655KTM | 1190 |
6482 10000012882Suzuki | DL 650 |
4914 10000006427Suzuki | DL 1000 |
5117 10000006244Suzuki | DR 650 |
5086 10000006246Suzuki | DR 750 |
4841 10000006042Yamaha | XT 660 |
