GOES Terrox 400L ATV (Mini Tractor) T3b
Motorcycles and ATV's trade in.

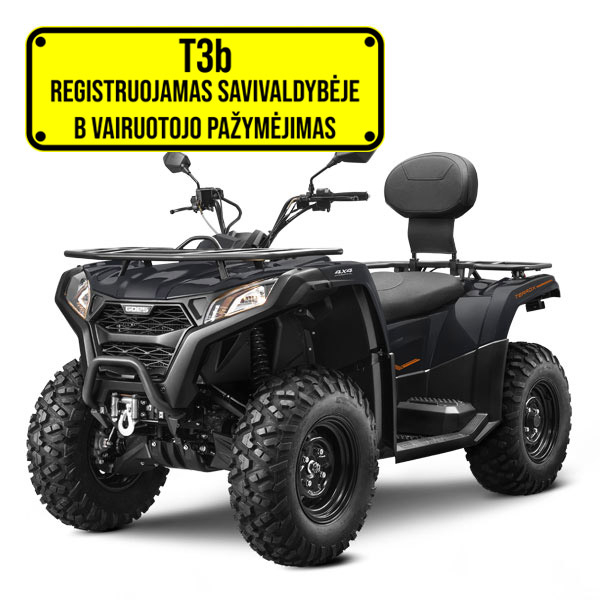

GOES TERROX 400L ATV
A practical two-seater ATV with a 400cc engine that develops 20.7 kW of power. The ATV features an automatic CVT gear shifting system. To ensure greater off-road capability, the ATV has a selectable four-wheel drive system, which allows you to choose between two rear-wheel drive or all four wheels. You can choose between two colours: black and grey.
This vehicle can be registered with the Municipality (T3b category) and its driver must have the right to drive category B vehicles or TR1, TR2 licenses.
ENGINE
The 400cc engine with an injection system develops 20.7 kW of power and generates 31.1 Nm of torque.
4-WHEEL DRIVE SYSTEM
The ATV features a selectable four-wheel drive system. With the help of buttons on the handlebars, you can switch between rear-wheel drive or all four wheels.
TOWING WINCH
This ATV has an electric towing winch of 1134 kg power, which you can conveniently control with buttons on the handlebars.
PASSENGER BACKREST
The passenger backrest will ensure greater comfort for the passenger seated at the back.
ALLOY RIMS
Alloy wheels are characterized by impact resistance and lower weight, which improves the ATV's handling characteristics and maneuverability.
HANDGUARDS
Ensure comfort and safety during off-road riding – they effectively protect hands from branches, mud, and pebbles.
DUAL USB AND 12V CHARGING SOCKETS
The 12V socket and dual USB connection included in the ATV's equipment ensure a continuous power supply for your devices.
GOES TERROX 400L ATV's specifications:
ENGINE
| Type | Single-cylinder, 4-stroke, liquid cooling, SOHC 4-valve |
| Discplacement | 400 cc |
| Bore x Stroke | 91.0 x 61.5 mm |
| Compression | 10.3±0.5 : 1 |
| Max Power Output | 20.7 kW at 7250 rpm |
| Max Torque | 31.1 Nm at 5500 rpm |
| Max Speed | Limited to 60 km/h |
| Fuel System | EFI |
| Fuel Tank Capacity | 14 L |
| Transmission | Automatic CVT |
DIMENSIONS
| Device dimensions (L x W x H) | 2390 × 1100 × 1435 mm |
| Wheelbase | 1460 mm |
| Ground Clearance | 250 mm |
| Weight | 382 kg |
| Max Load Capacity | 200 kg |
| Seat Height | 530 mm |
| Seating Capacity | 2 |
CHASSIS
| Gearing | 2WD / 4WD |
| Brakes | 3 hydraulic disc brakes |
| Suspension | Double A-Arm |
| Shocks | Hydraulic |
| Rims | Front: R12 x 6.0 AT, alloy Rear: R12 x 7.5 AT, alloy |
| Tires | Front: 25" x 8.00-12 Rear: 25" x 10.00-12 |
| Power Steering | Not available |
Equipment: LCD instrument panel, 4-wheel drive system, electric winch, tow hitch, passenger backrest, alloy wheels, handguards, dual USB and 12V charging socket.
The GOES TERROX 400L ATV comes with a 2-year manufacturer's warranty
