GOES Terrox 500L ATV (Mini Tractor) T3b
Motorcycles and ATV's trade in.

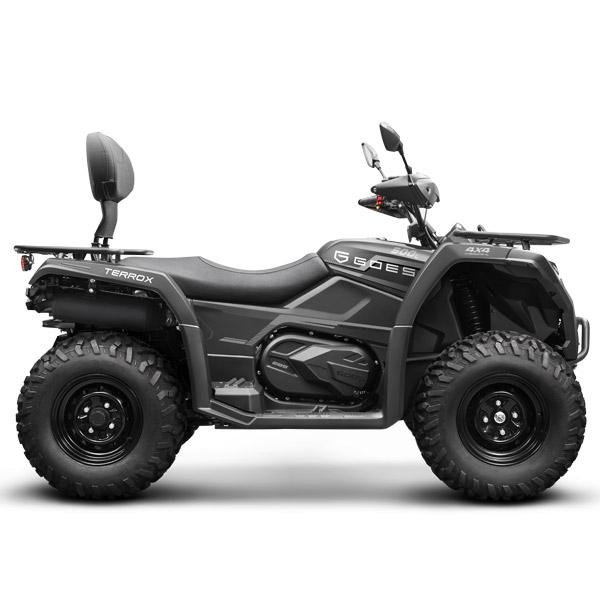

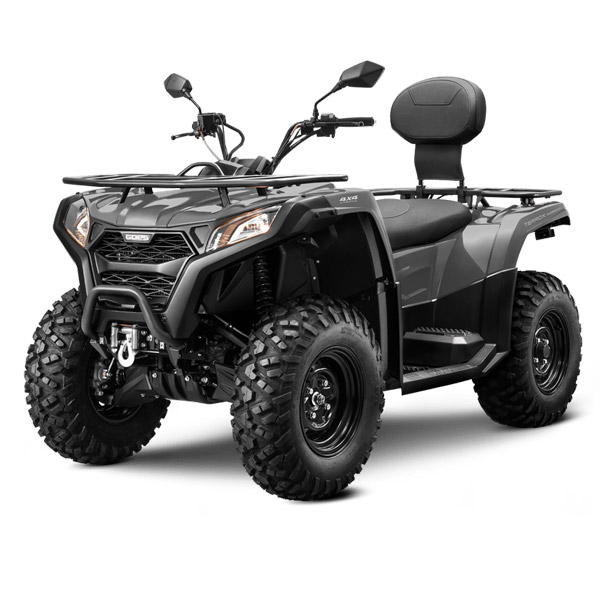

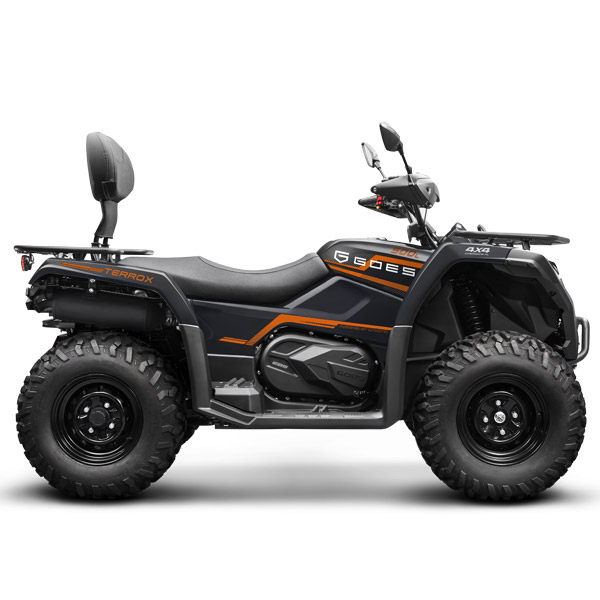

GOES TERROX 500L ATV
A practical two-seater ATV with a 495cc engine that develops 25.5 kW of power. The ATV features an automatic CVT gear shifting system. To ensure greater off-road capability, the ATV has a selectable four-wheel drive system, which allows you to choose between two rear-wheel drive or all four wheels. You can choose between two colours: black and grey.

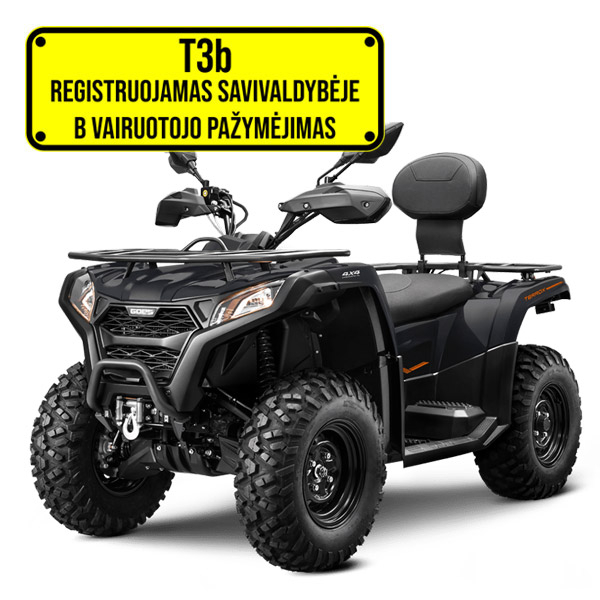

This vehicle can be registered with the Municipality (T3b category) and its driver must have the right to drive category B vehicles or TR1, TR2 licenses.
ENGINE
The 495cc engine with an injection system develops 25.5 kW of power and generates 38.4 Nm of torque.
4-WHEEL DRIVE SYSTEM
The ATV features a selectable four-wheel drive system. With the help of buttons on the handlebars, you can switch between rear-wheel drive or all four wheels.
TOWING WINCH
This ATV has an electric towing winch, which you can conveniently control with buttons on the handlebars.
PASSENGER BACKREST
The passenger backrest will ensure greater comfort for the passenger seated at the back.
HAND GUARDS
The hand guards will protect you not only from the wind but also from branches when driving through dense forest.
STEEL RIMS
The ATV features lightweight yet very strong steel rims that will serve well when driving off-road.
GOES TERROX 500L ATV's specifications:
ENGINE
| Type | Single cylinder, 4-stroke, liquid cooling, SOHC |
| Displacement | 495 cc |
| Bore x Stroke | 91.0 x 76.2 mm |
| Compression | 10.3±0.5 : 1 |
| Max Power Output | 25.5 kW at 7250 rpm |
| Max Torque | 38.4 Nm at 5750 rpm |
| Max Speed | Limited to 60 km/h |
| Fuel System | EFI |
| Fuel Tank Capacity | 14 L |
| Transmission | Automatic CVT |
DIMENSIONS
| Device dimensions (L x W x H) | 2390 × 1100 × 1435 mm |
| Wheelbase | 1460 mm |
| Seat Height | 530 mm |
| Ground Clearance | 250 mm |
| Weight | 382 kg |
| Max Load Capacity | 200 kg |
| Seating Capacity | 2 |
CHASSIS
| Gearing | 2WD / 4WD |
| Brakes | 3 hydraulic disc brakes |
| Suspension | Double A-Arm |
| Shocks | Hydraulic |
| Rims | Front: R12 x 6.0 AT, Steel Rear: R12 x 7.5 AT, Steel |
| Tires | Front: 25" x 8.00-12 Rear: 25" x 10.00-12 |
| Power Steering | Equipped |
Standard Equipment: Electric Power Steering System, LCD dashboard, 4-wheel drive, Electric Winch, Hitch, Handguards, Passenger Backrest, Steel Wheels
The GOES TERROX 500L ATV comes with a 2-year manufacturer's warranty
