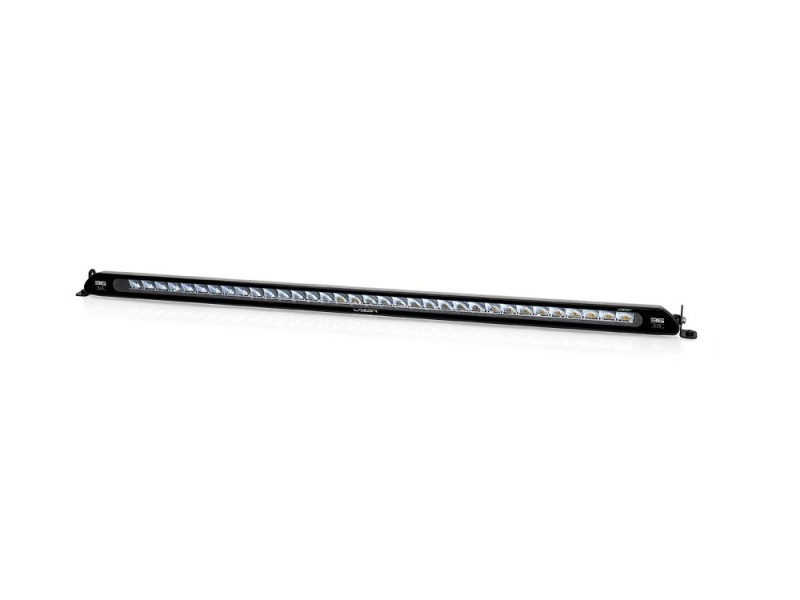

Linear-36 Elite is an ultra-low-profile LED light bar that can be discreetly installed without compromising the aesthetic appearance of the vehicle. The Elite version of the light features highly efficient 3W LEDs, also used in WRC rally lighting systems, and reflectors produced using the latest vacuum metallization technology. Its wide beam pattern allows the light bar to be mounted closer to the ground while avoiding reflections from the road surface.

• High-quality 3W LED technology

• Sleek, low-profile design for easier installation

• ECE certified

• Electrothermal management

• Certified for use on public roads

• IP67 ingress protection rating

• 5-year warranty

• Designed and manufactured in the United Kingdom

Kit includes:

• 1x Linear-36 Elite LED light bar

• 1x Side bracket (1126k) with anti-theft protection

• 1x Installation guide

Technical specifications:

• Operating voltage: 10–32V

• Lifespan: 50,000 hours

• Weight: 2700 g

• Luminous flux: 29,700 lumens

• Number of LEDs: 36

• Power consumption: 308 W

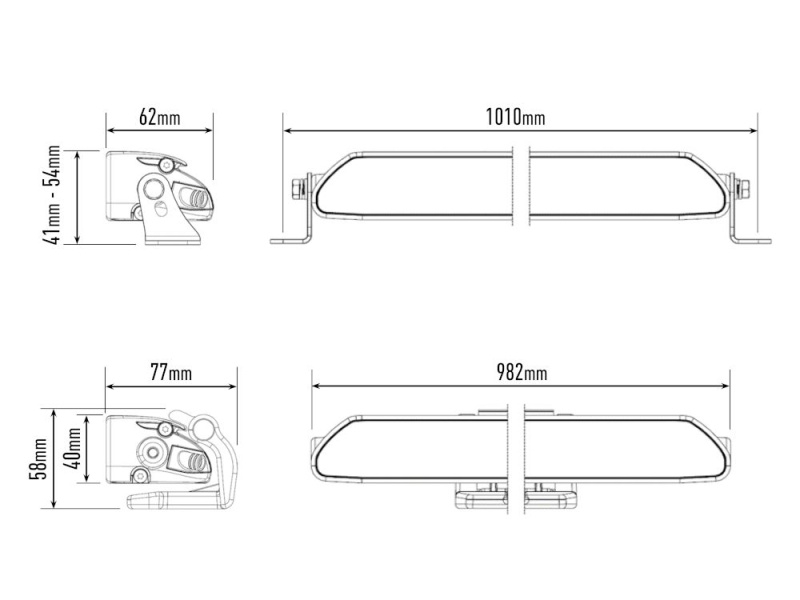

Dimensions:

• Width: 982 mm

• Depth: 62 mm

• Height: 40 mm

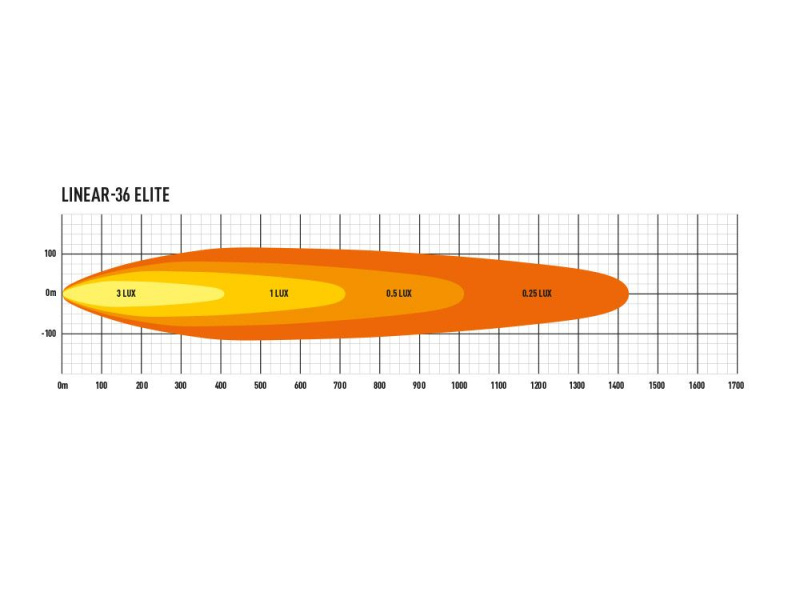

Photometric performance:

• 0.25 lx line: 1423 m

• 0.5 lx line: 1006 m

• 1 lx line: 712 m

• 3 lx line: 411 m
