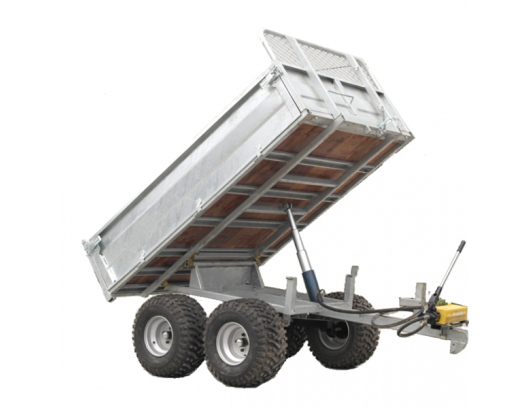

Bronco 3-Way Tip Trailer max 1600kg

Bronco 3-Way Tip Trailer for ATV, UTV

The Bronco 3-Way Tipping Trailer is built for heavy-duty work and capable of carrying up to 1600 kg of cargo. This robust and versatile trailer features an electro-hydraulic tipping mechanism, making unloading quick and easy. It’s designed to be compatible with ATVs, UTVs, and smaller tractors, equipped with a 50 mm ball hitch, ensuring maximum convenience for a wide range of tasks.

3-Way Electro-Hydraulic Tipping

The Bronco 3-Way Tip Trailer is perfect for transporting large and heavy cargo with ease. Its electro-hydraulic tipping function allows you to tilt the flatbed hydraulically either backwards or to the sides, with a lift angle of up to 55 degrees. The hydraulic system is operated via a wired hand control unit for convenient use. For added safety and durability, the hydraulics are securely placed under the platform.

Large Flatbed

The Bronco 3-Way Tipping Trailer features a robust flatbed measuring 2000 mm in length and 1300 mm in width, with a load capacity of 1600 kg, making it ideal for transporting a variety of cargo. The flatbed comes with easily foldable and removable panels, allowing for quick unloading using the tipping function. Additionally, an adjustable opening on the rear spreader door provides added versatility when transporting bulk cargo.

Bronco 3-Way Tipper Trailer specs:

Important Notes

Please note that a separate battery is required to power the electro-hydraulic tipping system of the flatbed. The trailer is delivered without the battery, clamp, wiring, and hydraulic oil. We recommend using hydraulic oil 553-83062 (20L) or 553-83061 (5L) for optimal performance. Tank capacity – 3 liters.


Suitable batteries include:

145-YBXL36L-AGM
145-YBXM31R-100
145-YBXL35R-115
145-YBXM27R-090
Alternatively, you can use a generic 88AH/100Ah car battery.
